iTFS-110/80
Market-Proven Solid-State 3D Depth Sensor
The iTFS-110/80 is a cost-effective Complete Solid-State 3D LiDAR designed as an alternative to conventional LiDAR sensors. It uses Flash iToF technology to capture full-field depth without moving parts, while HYBO’s proprietary high-efficiency optical system enables mid-range sensing at approximately 10 meters.
320 × 160Wide Resolution
12.5 FPSReal-time Streaming
CLASS 1940-nm IR Laser Product
S-HAS READYValidated Detection Solution
PoE SUPPORT100Mbps Ethernet + Power
MARKET PROVENSmart Infra and Safety

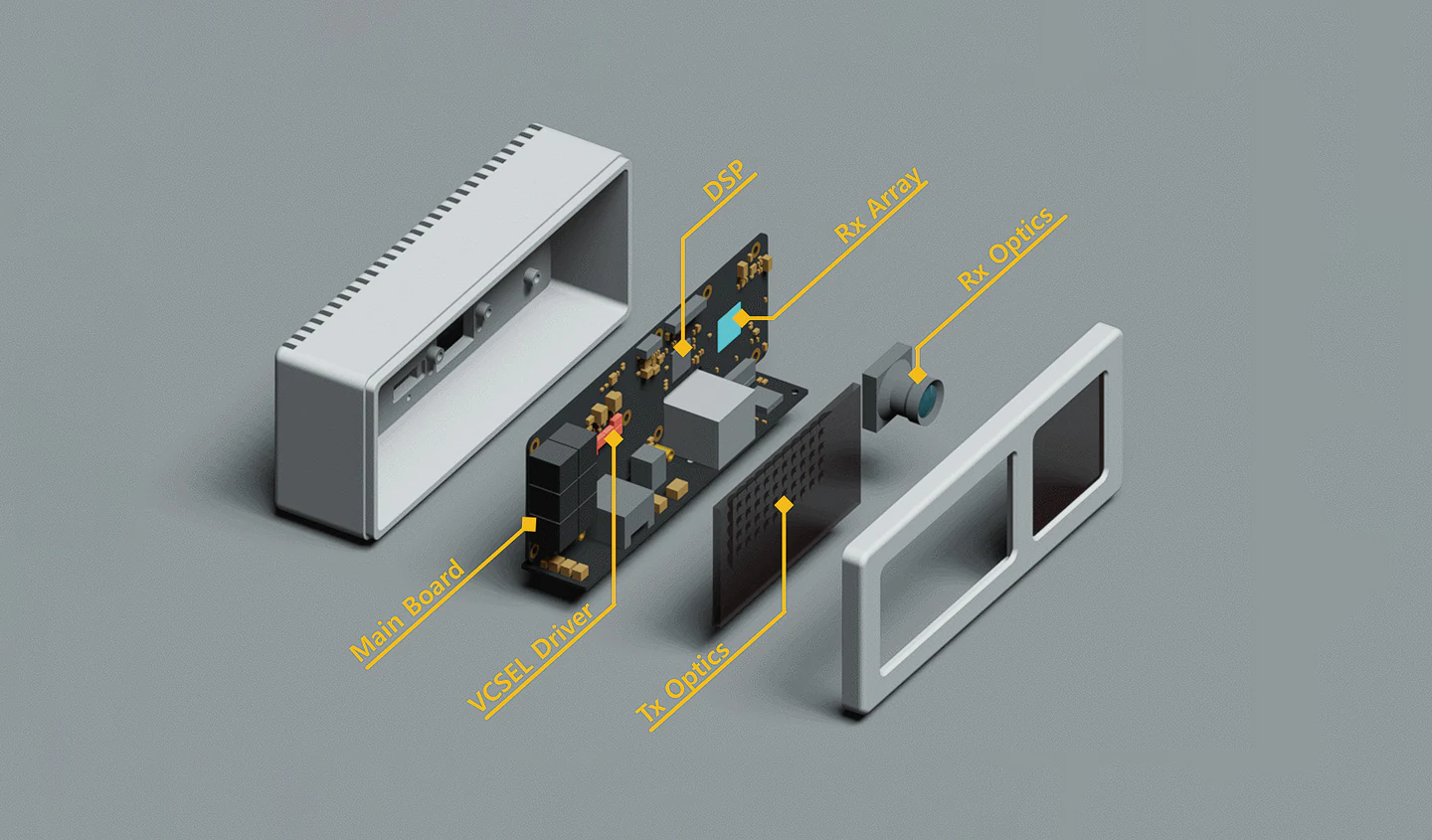

Complete Solid-State
Flash iToF technology captures full-field depth without mechanical scanning components, enabling stable operation in fixed installations.
- No Moving Parts
- Flash iToF Architecture
- Stable Operation for Fixed Installations

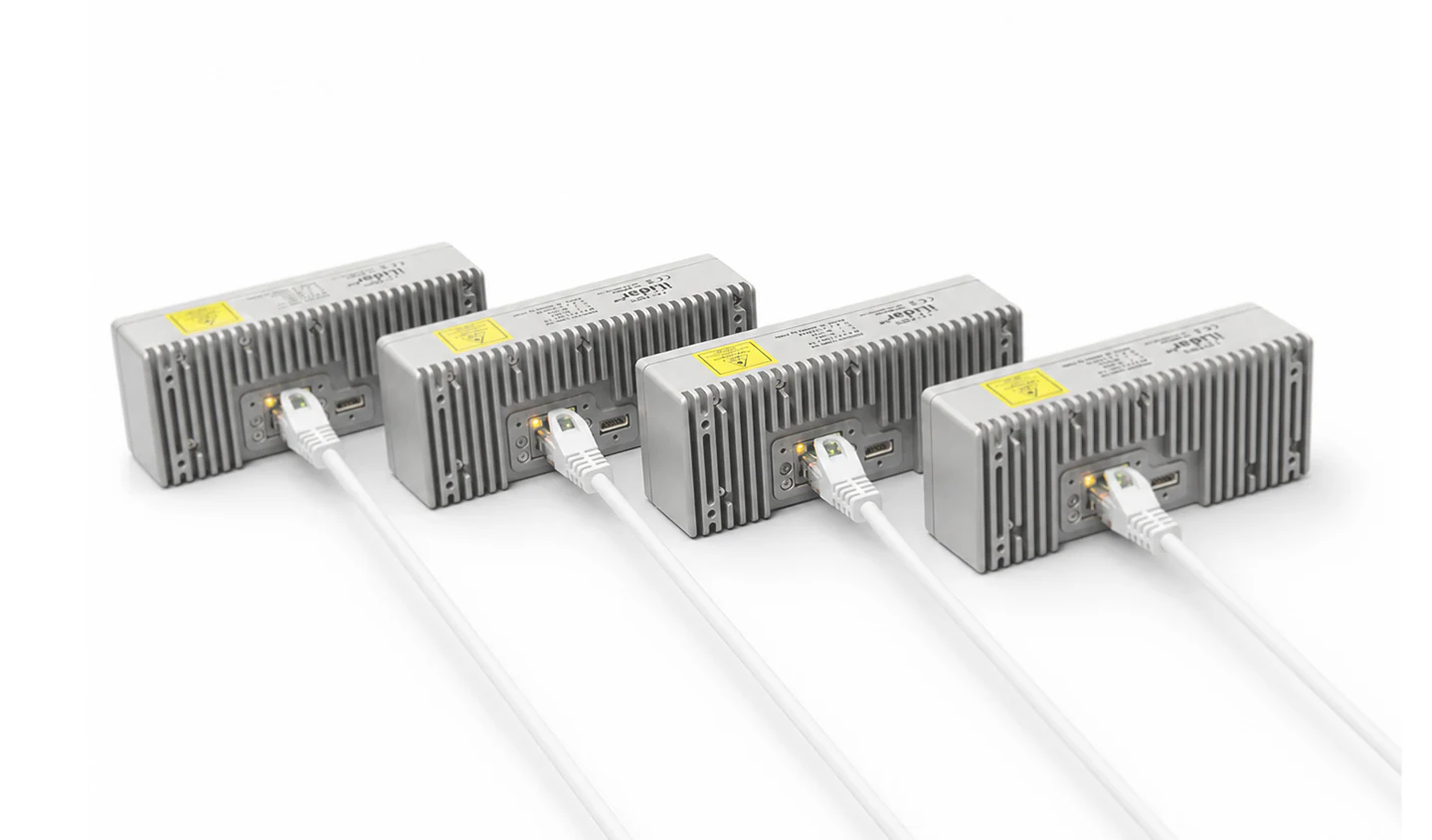

PoE Support
Power and depth data share a single Ethernet connection, simplifying installation across fixed sensor networks.
- Power and Data over a Single Ethernet Cable
- 100 Mbps Ethernet Connectivity
- Supports PoE (IEEE 802.3af)

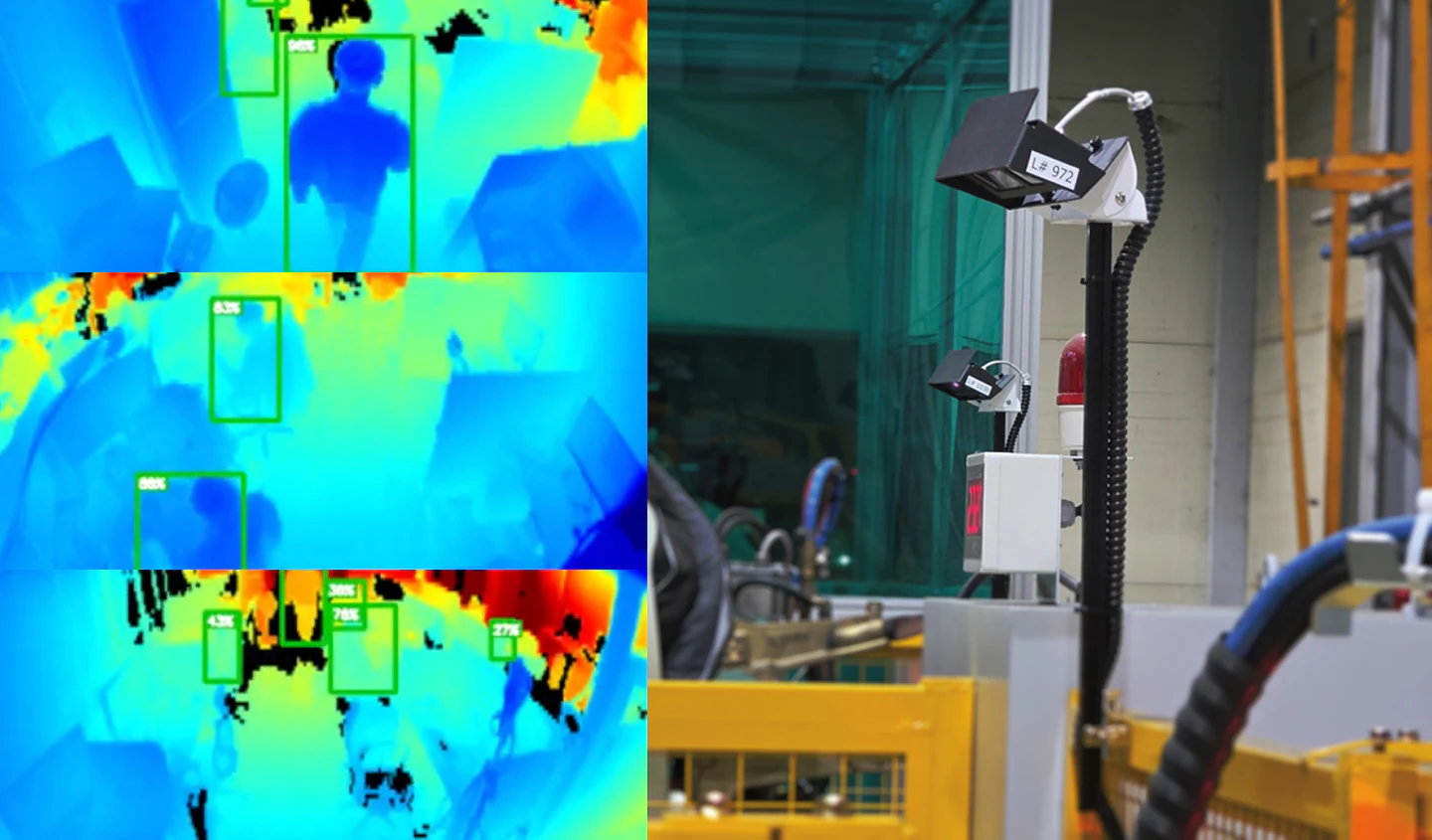

Market-Proven
Validated through commercial deployments, the iTFS-110/80 is ready for smart infrastructure and safety applications.
- Smart Infrastructure & Safety Applications
- S-HAS-Ready Detection Solution
- Validated through Commercial Deployments
Build faster with HYBO
Explore examples and integration resources on HYBO GitHub.
Native C++
Python
OpenCV
PCL
Open3D
Windows
Linux
ROS / ROS2

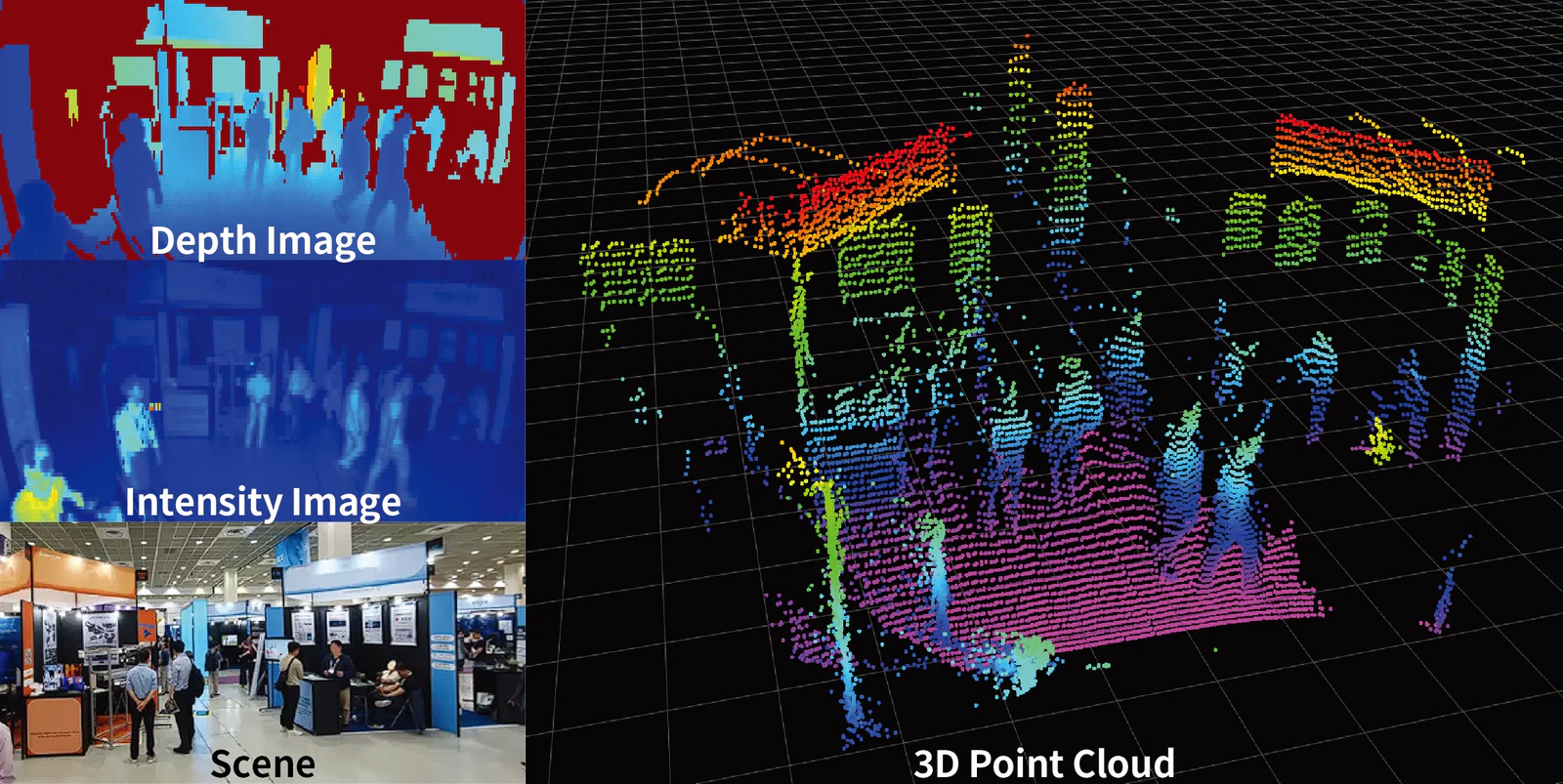

Depth Image Example
Technical Specifications
| FEATURES | iTFS-110 | iTFS-80 | ||||
|---|---|---|---|---|---|---|
| Mode 12) | Mode 2 | Mode 3 | Mode 1 | Mode 2 | Mode 3 | |
| Range3) | 0.5 - 8 m | 0.05 - 12 m | 0.05 - 16 m | 0.5 - 10 m | 0.05 - 15 m | 0.05 - 20 m |
| Angular Resolution (H × V) | 0.4° × 0.4° | 0.4° × 0.8° | 0.8° × 0.8° | 0.3° × 0.3° | 0.3° × 0.6° | 0.6° × 0.6° |
| Field of View (H × V)4) | 110° × 60° | 80° × 45° | ||||
| Accuracy | 3 - 5 cm + 2% of measured distance, typical | |||||
| Framerate | Typically 12.5 FPS (Up to 20 FPS with heatsink and reduced ROI) | |||||
| Dimensions | 115 × 46 × 31.5 mm (W × H × D) | |||||
| Weight | 200 g | |||||
| Power | Avg. 6 W / Max. 12 W (12 VDC or PoE) | |||||
| Interface | Ethernet (RJ-45) | |||||
| Output | Depth and Intensity Images | |||||
| Certification | KC / CE / RoHS | |||||
| Sunlight Immunity | Approx. 33 klx (80% ranging performance at Mode 2 with an 80% diffuse reflectance target) | |||||
| Laser Safety | 940 nm IR Laser, IEC 60825-1 Class 1 Laser Product | |||||
| Ingress Protection | Optional IPX5 (with pigtail cable accessory) | |||||
Range3)
- iTFS-110 · Mode 1
- 0.5 - 8 m
- iTFS-110 · Mode 2
- 0.05 - 12 m
- iTFS-110 · Mode 3
- 0.05 - 16 m
- iTFS-80 · Mode 1
- 0.5 - 10 m
- iTFS-80 · Mode 2
- 0.05 - 15 m
- iTFS-80 · Mode 3
- 0.05 - 20 m
Angular Resolution (H × V)
- iTFS-110 · Mode 1
- 0.4° × 0.4°
- iTFS-110 · Mode 2
- 0.4° × 0.8°
- iTFS-110 · Mode 3
- 0.8° × 0.8°
- iTFS-80 · Mode 1
- 0.3° × 0.3°
- iTFS-80 · Mode 2
- 0.3° × 0.6°
- iTFS-80 · Mode 3
- 0.6° × 0.6°
Field of View (H × V)4)
- iTFS-110
- 110° × 60°
- iTFS-80
- 80° × 45°
Accuracy
- 3 - 5 cm + 2% of measured distance, typical
Framerate
- Typically 12.5 FPS (Up to 20 FPS with heatsink and reduced ROI)
Dimensions
- 115 × 46 × 31.5 mm (W × H × D)
Weight
- 200 g
Power
- Avg. 6 W / Max. 12 W (12 VDC or PoE)
Interface
- Ethernet (RJ-45)
Output
- Depth and Intensity Images
Certification
- KC / CE / RoHS
Sunlight Immunity
- Approx. 33 klx (80% ranging performance at Mode 2 with an 80% diffuse reflectance target)
Laser Safety
- 940 nm IR Laser, IEC 60825-1 Class 1 Laser Product
Ingress Protection
- Optional IPX5 (with pigtail cable accessory)
- 1)Specifications are subject to change without notice. (Data as of 15 June 2026)
- 2)On-the-fly configuration is available for mode, framerate, and output data.
- 3)Measured at the center ROI using an 80% diffuse reflectance target.
- 4)Range-guaranteed scope. Working horizontal fields of view are 120° and 90° for iTFS-110 and iTFS-80, respectively.
Mechanical Dimensions (mm)
